Product Description
SOLD D.P. #090460752020

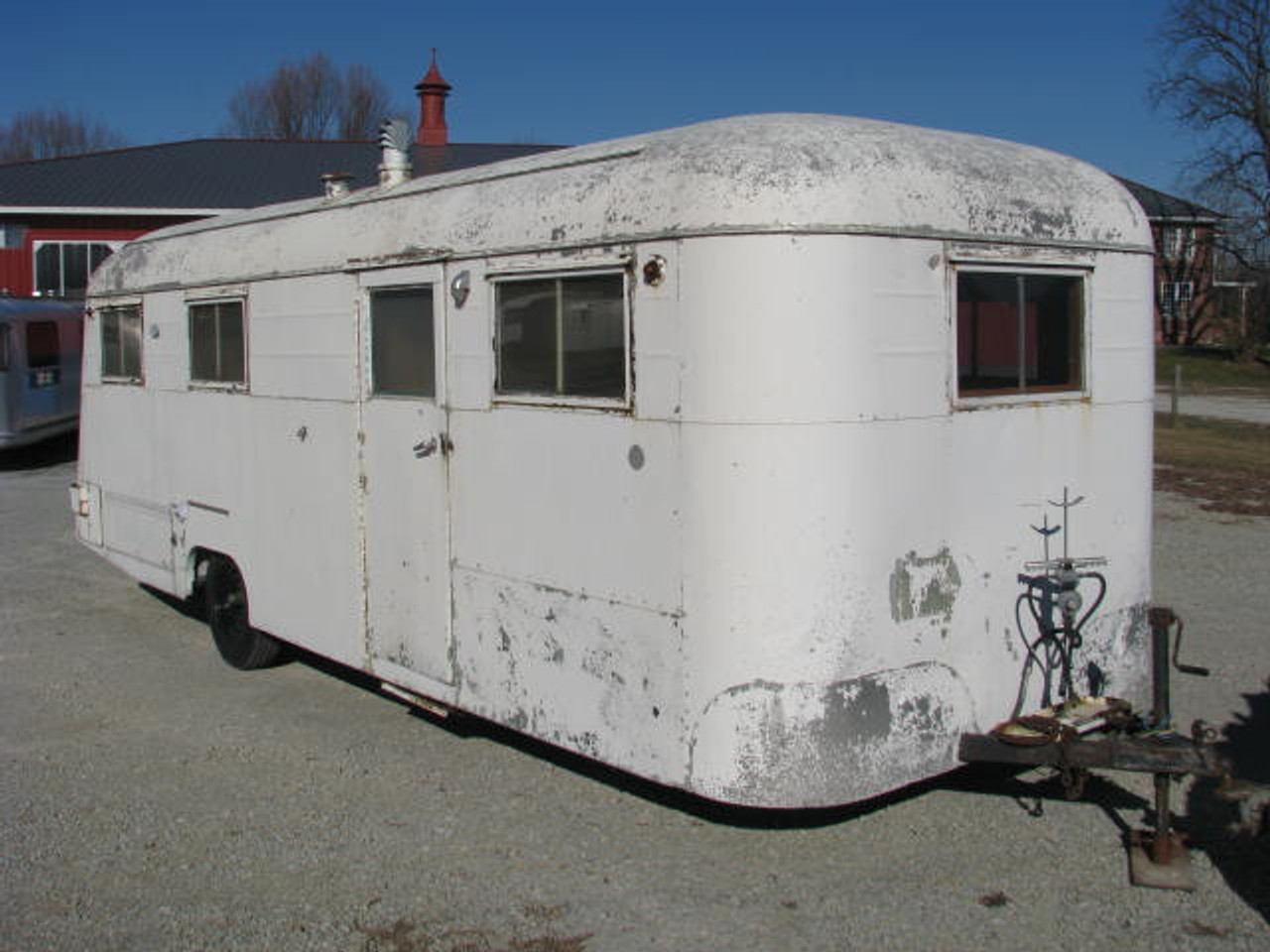

EXTERIOR
Description: This is a very desirable and hard to find trailer which has riveted construction. The exterior has some aluminum panels which are beat up but they are all flat panels which is a pretty easy repair. The interior is in very nice shape for a 69 year old trailer. Questions?? Call Dan at 765-473-8088.
Bumper, Frame, & A-frame: It has a 3 inch steel channel frame, which has surface rust but appears to be good and solid in all areas accessible for inspection.
Compartment Door/Keys: It has a nice 44" x 12" compartment door. The door is in good shape but it has been screwed shut and we have no keys.
Dents, Scratches & Damage: There are several panels which have dents and scrapes but most damage panels are down low and are just flat aluminum, which are relatively easy to change.
Entry Door/Keys: It has the original aluminum entry door, which is in pretty good shape. It has the original L handle and interior lock box, which is in working condition but we have no keys. The door has old seals, which should be replaced. It has the original aluminum rear entry door, which is in good condition. It has a replacement L handle but still has the original lock box. The L handle does not open the door from the exterior but it opens fine from the inside. There are no keys. This door has old seals, which should be replaced
Entry Step: It has the original slide out entry step, which slides out but one side needs re-welded. There is no rear entry step.
Front Hoist: It has 1000 pound side wind front hoist, which is in working condition.

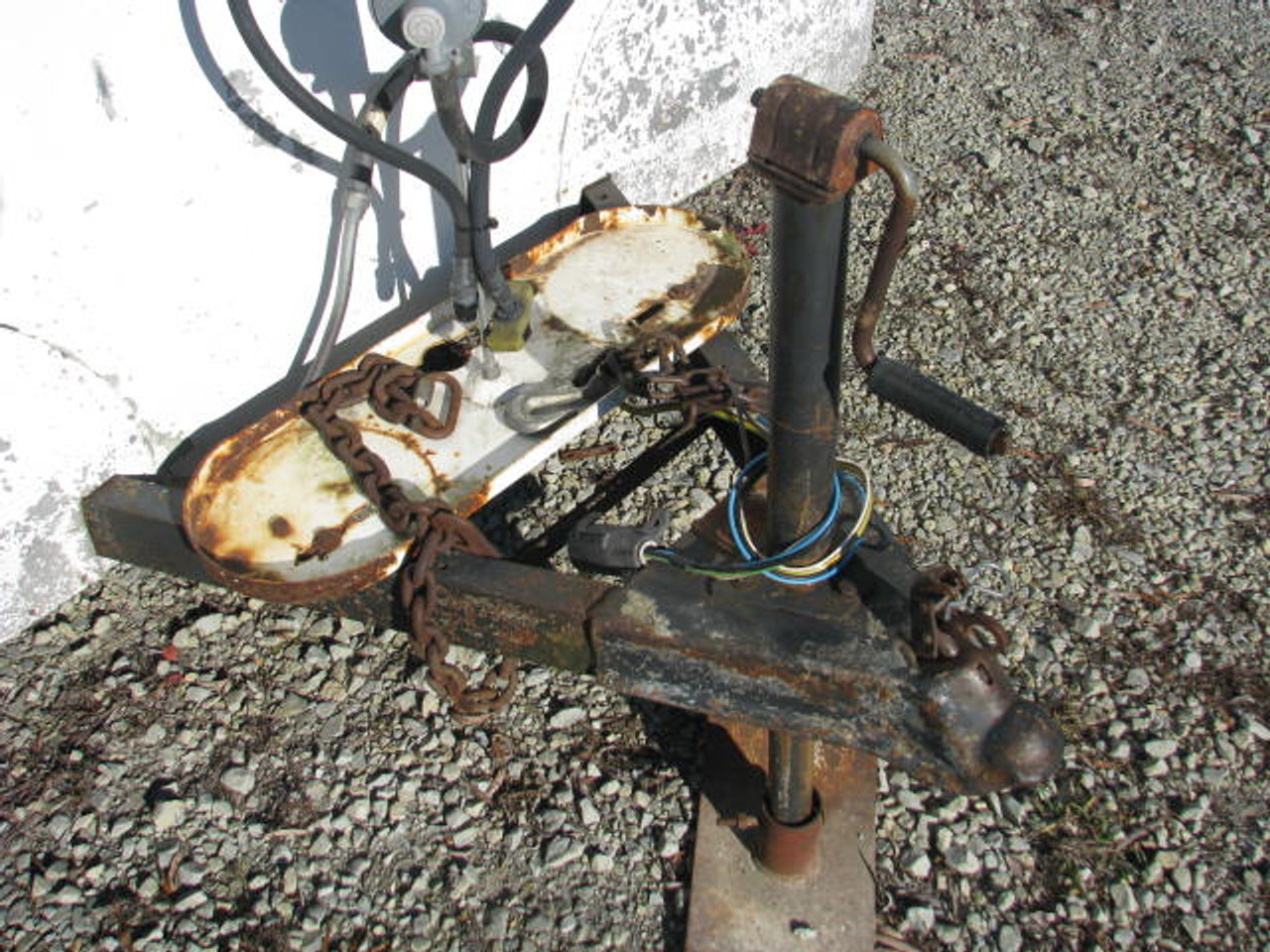

Hitch Coupler: It has the original hitch coupler with 2 inch ball. The hitch coupler is in working condition.
Roof: It has the original aluminum roof, which has no apparent damage. It looks like all three of the roof vents have been removed and have been patched over.
Screen Door: It has the original front wood screen door. It has been painted but still appears to be in pretty decent shape. It also has the original rear wood screen door but the wood is damaged on the bottom 6 inches.
Tail, License & Marker Lights: It has all four of the original beehive style marker lights with steel bases and glass lenses. All glass lenses appear to be in good condition. Steel bases do have some surface rust. It has the original license plate light and bracket. The clear bottom lens and the red glass lens are both in good condition. It has Dietz 550 taillights, which spells out stop on them. I don't know if these are original but they are old and very cool. All stop,tail, and turn lights on the rear of the trailer are in working order.

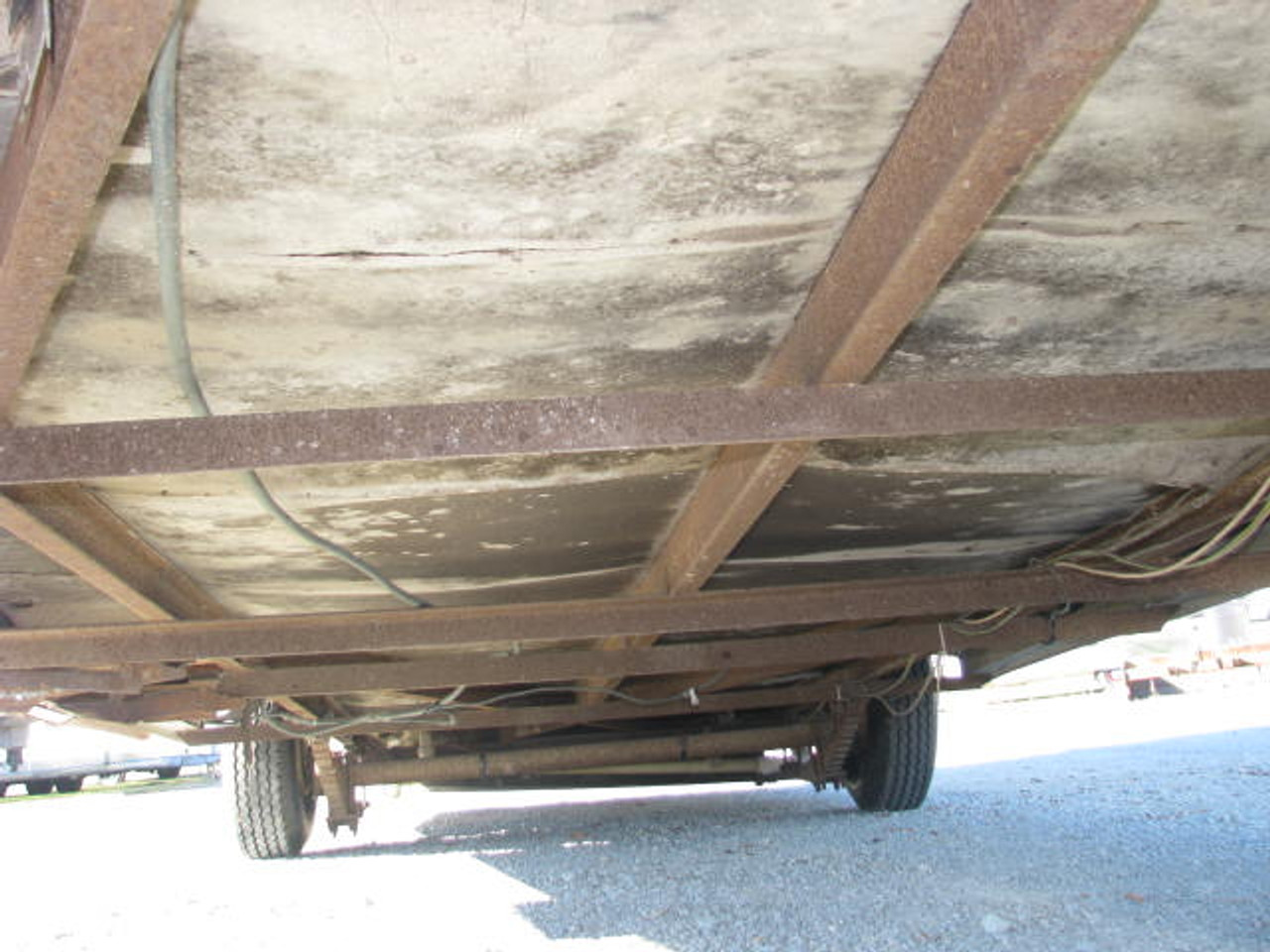

Underbelly: The original underbelly is approximately 70% intact however some areas have had new foam installed.
Window Glass/Seals: This has the original Marvel brand steel windows. These windows are famous for rusting out at the very bottom. Four of them are rusting out at the bottom and two of them aren't in real bad shape. One is sealed shut so I don't know what kind of condition it's in. All the windows have the original hardware and screens except for the front window, which is missing the lift arm and the screen is in trailer loose. All glass is good except one window has a small crack in the corner. All windows will need new seals.
INTERIOR

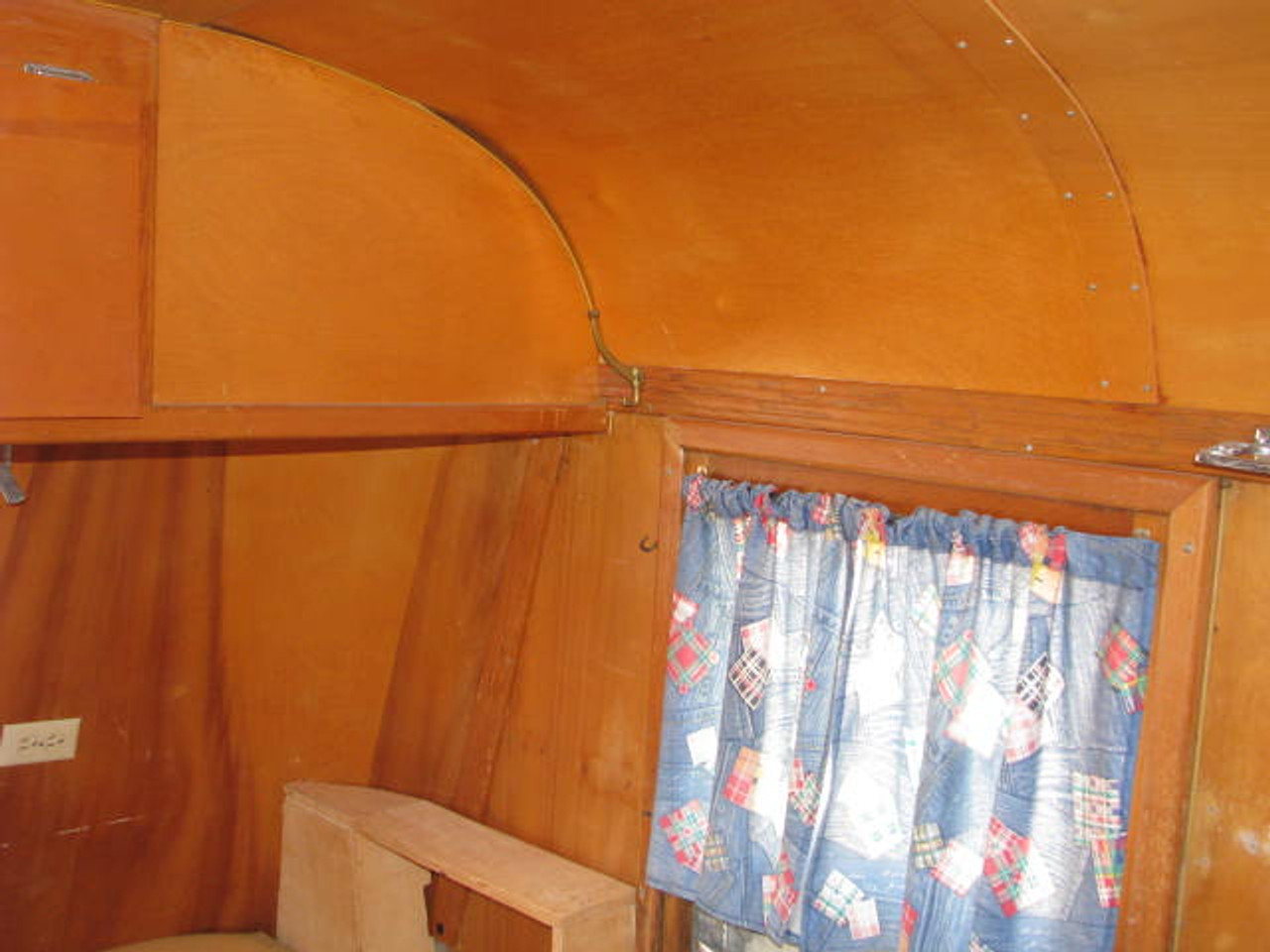

Description: The interior of this trailer is in pretty nice shape for a late 40's trailer. It has birch paneling on the walls and ceiling which is in pretty good shape. A few things have been modernized but a lot of the original stuff is still there also.
Cabinet - Closet Doors: It has most of the original Birch cabinet doors, closet doors, and drawers. The cabinet door beneath the stove has been replaced and is not original.
Catches: Original.
Countertops: The original countertop has been replaced with a newer countertop with a butcher block pattern. The countertop is in good condition.
Floor: The floor has carpet and a pad so it is sort of hard to find any soft spots however I did find a small soft spot in the floor near the rear entry door.
Floor Covering: Carpet.

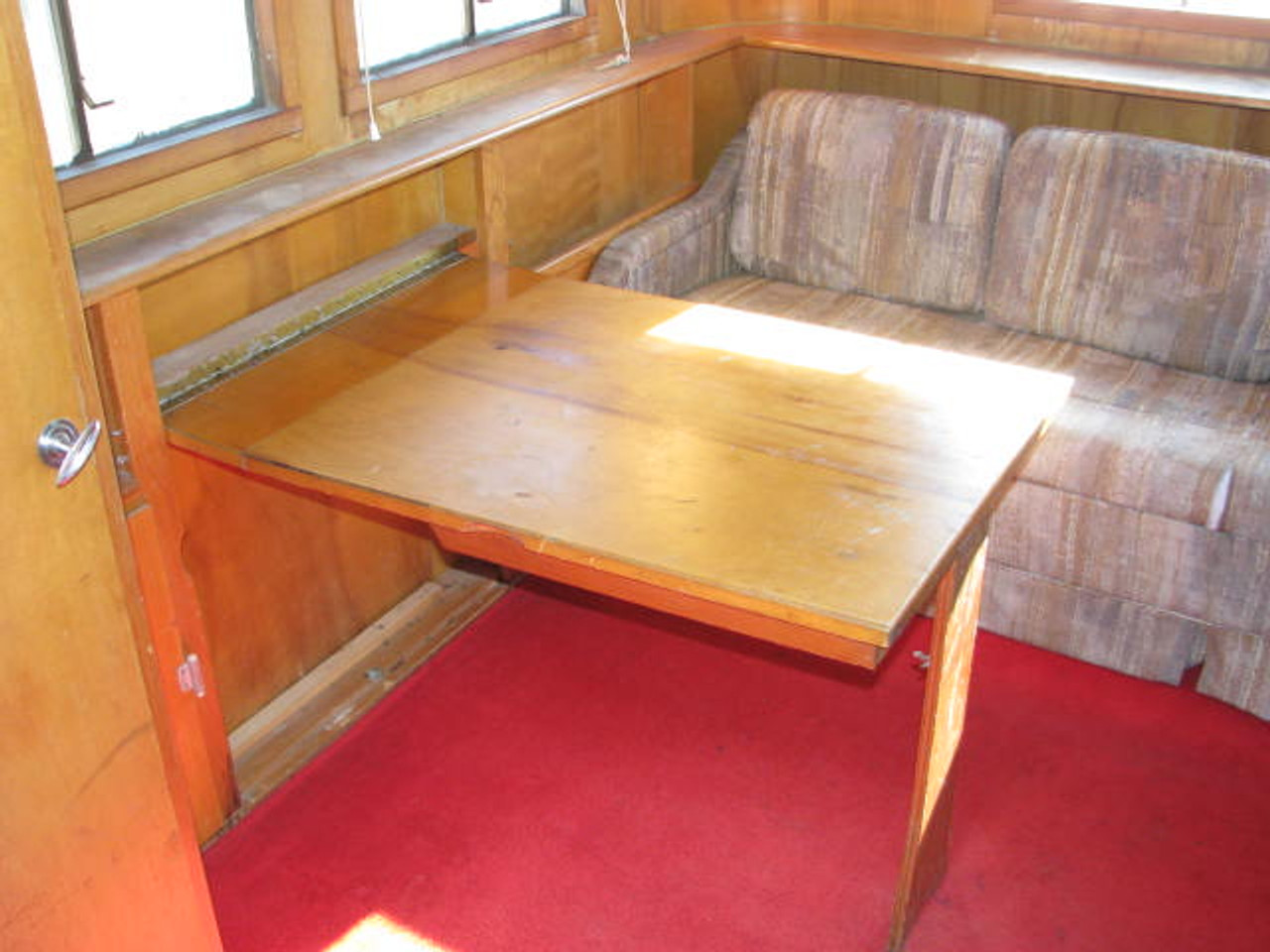

Table: It has the original fold out wood table, which is in good condition.
Unit Sleeps: There is room for up to four people.
Walls: It has the original Birch walls, which are in pretty nice condition. There are some water stains around the windows and down low by the floor.
RUNNING GEAR
Description: It has the original running gear with the exception of brand new tires. We pulled the grease caps and the grease looked adequate. The trailer was pulled over 300 miles with no problems.
Axle/Springs: It as the original axles with leaf spring suspension. It has surface rust but everything appears to be good and solid.
Dry Weight: Approx. 4000#
Hitch Ball Height: Approximately 16 inches.
Hitch Ball Size: 2 inch.
Hitch Weight: Approx. 480#
Hub Caps: No, but it has the original rims with the 6 clips so hub caps could be easily added.
Safety Chains: No.
Spare Tire: No.
Tire Conditions: It has two brand new 7:50 x 16 LT 10 ply bias tires mounted on original six lug rims with 5 1/2 inch bolt circle.
FURNISHINGS
Description: Most of the original furnishings are gone.
Bed/Mattresses: It has a 41" x 78" foam mattress in rear.
Couch/Gaucho: It has a newer couch in front, which converts into a 50" x 72" bed.
Curtains: no.
Dinette Cushions: N/A
ELECTRICAL
Description: It has the original electric system with an electrical box with two automatic reset circuit breaker's. Most of the 110 lights and outlets do work. Electrical system and all appliances should be checked by certified expert before use.
110 Volt Lights: Yes. It has most of the original lights and are in working condition.
12 Volt Int. Lights: Yes, several 12V lights have been added to this trailer. Most of the 12 V lights are in working condition but trailer will need a battery for them to work.
Brakes: Yes. It has electric brakes, which are in working order.
Breakaway Switch: No.
Converter: No.
Int. Fan(s): No.
Plug for Ext. Lights: Yes. It has a brand new seven way plug. This is same plug that most current trailers use.
Porch Light: Yes. It has the original porch light with glass lens, which is in working order.
RV Battery: No, but there has been a mount added at the rear of the trailer for a battery.
LP SYSTEM
Description: Looks like the LP system has been updated and everything is there with the exception of LP tanks. LP system and all appliances should be checked by certified expert before use.
Auto Changeover: Yes.
Furnace: Yes. It has a Dayton brand wall furnace from the 60s or 70s has been added. This furnace works off LP gas and has a 35,000 output BTU rating. The pilot and main burner do light.
Gas Bottle(s): No.
Gas Light(s): It looks like there were some gas lights in this trailer at one time because you can still see the quarter inch copper lines. There are no complete gaslights currently. These quarter inch gas lines should be hooked up to gas lights or plugged for safety reasons.
Gas Regulator: Yes.
Range/Oven: Yes. It has a Traveler brand range from the 70s, which has three top burners and oven below and works off of LP gas. One of the stove knobs does not match. The top burners all light fine but we could not get the oven main burner to come on.

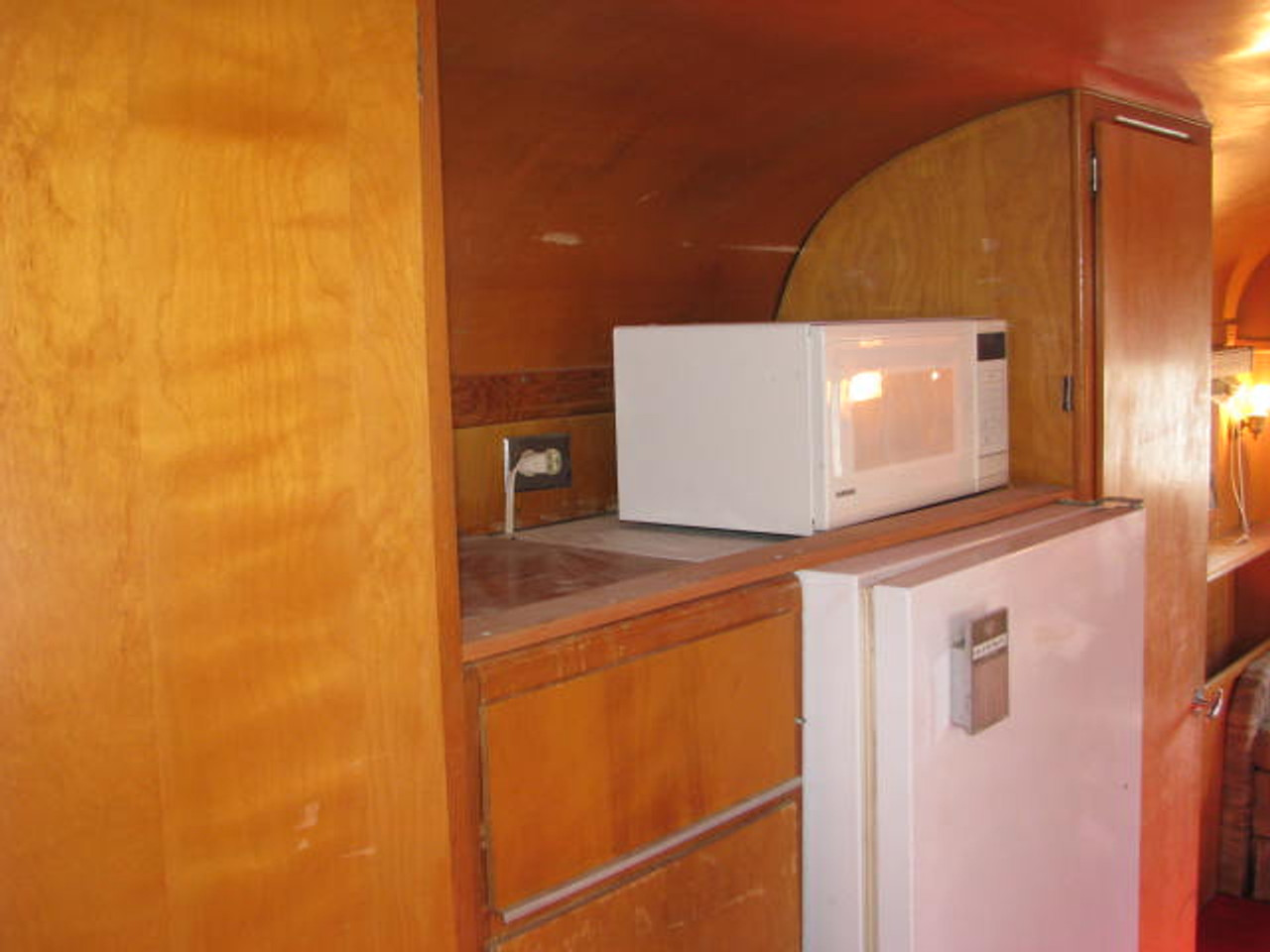

Refrigerator: Yes. It has a newer electric only refrigerator. The refrigerator does cool.
Water Heater: Yes. It has a newer Atwood brand gas water heater, which has had a Hot Rod brand add on electric heating element added. The water heater is un-tested.
Water Heater - Gallons: 6 Gallons
PLUMBING
Description: It has much of the original plumbing intact but some new plumbing has been added. I did a visual inspection and did not see any crack the lines. Plumbing system and all appliances should be checked by certified expert before use.
Air Pump: No.
Fresh Water Tank: Yes. It has a 54" x 12" freshwater tank.
Kitchen Sink: Yes. It has a newer stainless steel 2 bowl sink, which is in good condition.

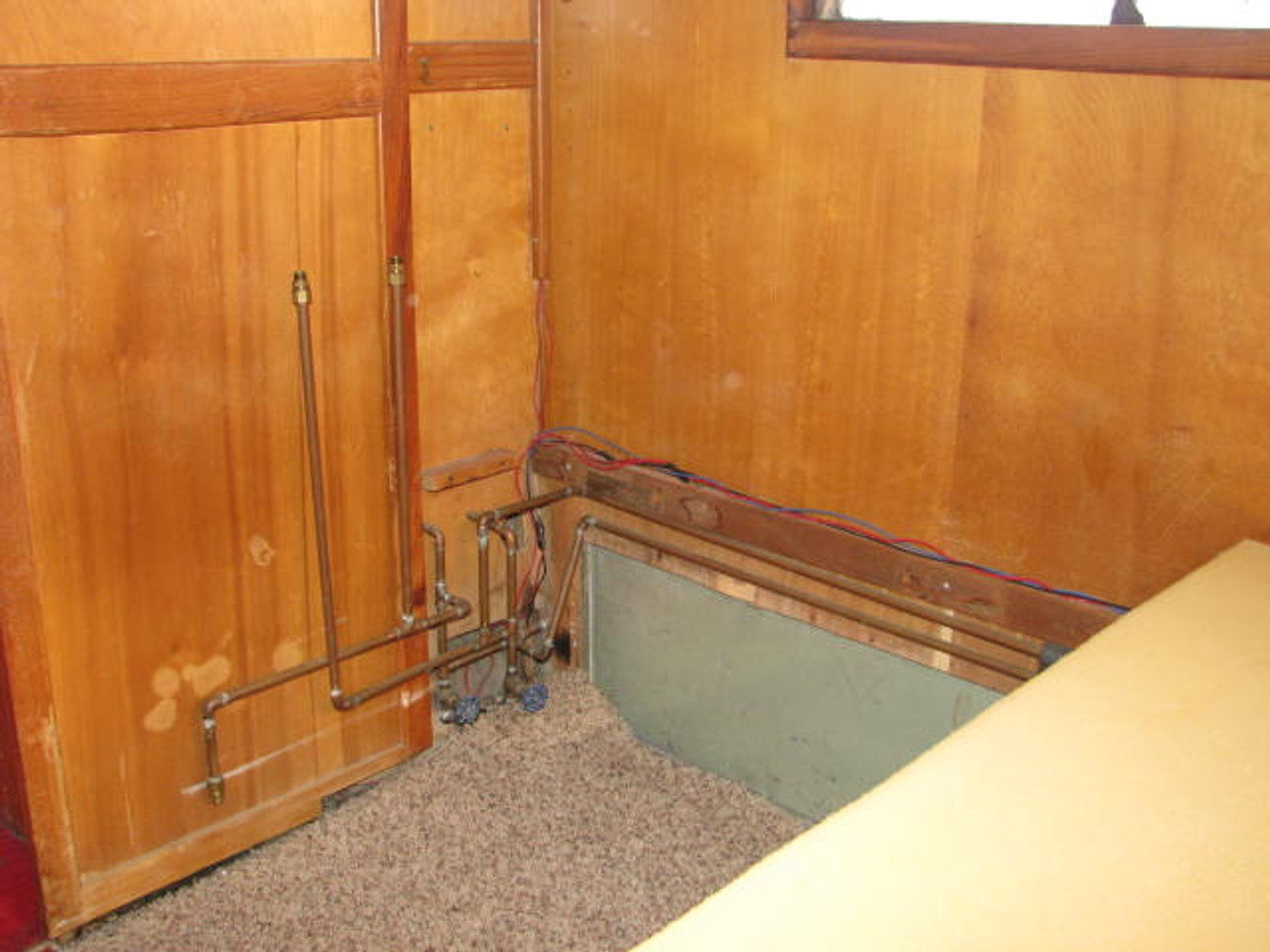

Lavatory: No. This trailer originally did have a lavatory because the original plumbing is still there.
Sewer Holding Tank: Yes. A 48" x 25" x 7" holding tank has been added and looks to be in good condition.
Shower: No.
Toilet: No. It does have the floor flange and holding tank already installed so it's just a matter of bolting a toilet in and hooking up a water line.
Tub: No.
Waste Holding Tank: No.
Water Intake Valve (City): Yes.
Water Pump: Yes. It has a newer Shurflo brand 12 V pump. The water pump is un-tested
SPECIAL
Description: I do not run into Westwood Coronados very often. This trailer is built like an airplane with riveted construction for long life and durability. Westwoods were built by Westcraft, the same company that built the highly desired trolly top coach. Here's your chance to own a very restorable trailer at a very reasonable price.
OTHER
Description: We can do minor repairs or full restoration to this trailer or other vintage campers if you so desire. If you have not done so yet, you might visit our Restoration page: Restoration Info
Air Conditioning: No.
Awning: No.
Microwave: Yes.
Stabilizer Jacks: Yes. There are four free standing tripod tight jacks in the trailer loose.
TV Antenna: No.
MISC.
Description: This trailer does not come with any optional equipment or hitch parts. If you are interested in this trailer please check out our Terms & Conditions Page. If this vintage trailer does not suit your needs, please check out all the other vintage campers we have at www.VintageCampers.com.
Dolly Wheel: No.
Equalizer Bars: No.
Hitch Head: No.
Owner's Manual: No.
Owner's Paperwork: No.
Sway Control: No.
